Captus - Mid Step Electric Bike
Captus - Mid Step Electric Bike
Description
Captus brings premium e-bike technology to a price point that makes sense. Powered by a Bosch e-system with a 400Wh battery and Active Line motor, it’s built for reliable performance on city streets and beyond. Smooth power, proven components, and a design that’s ready for everyday use.

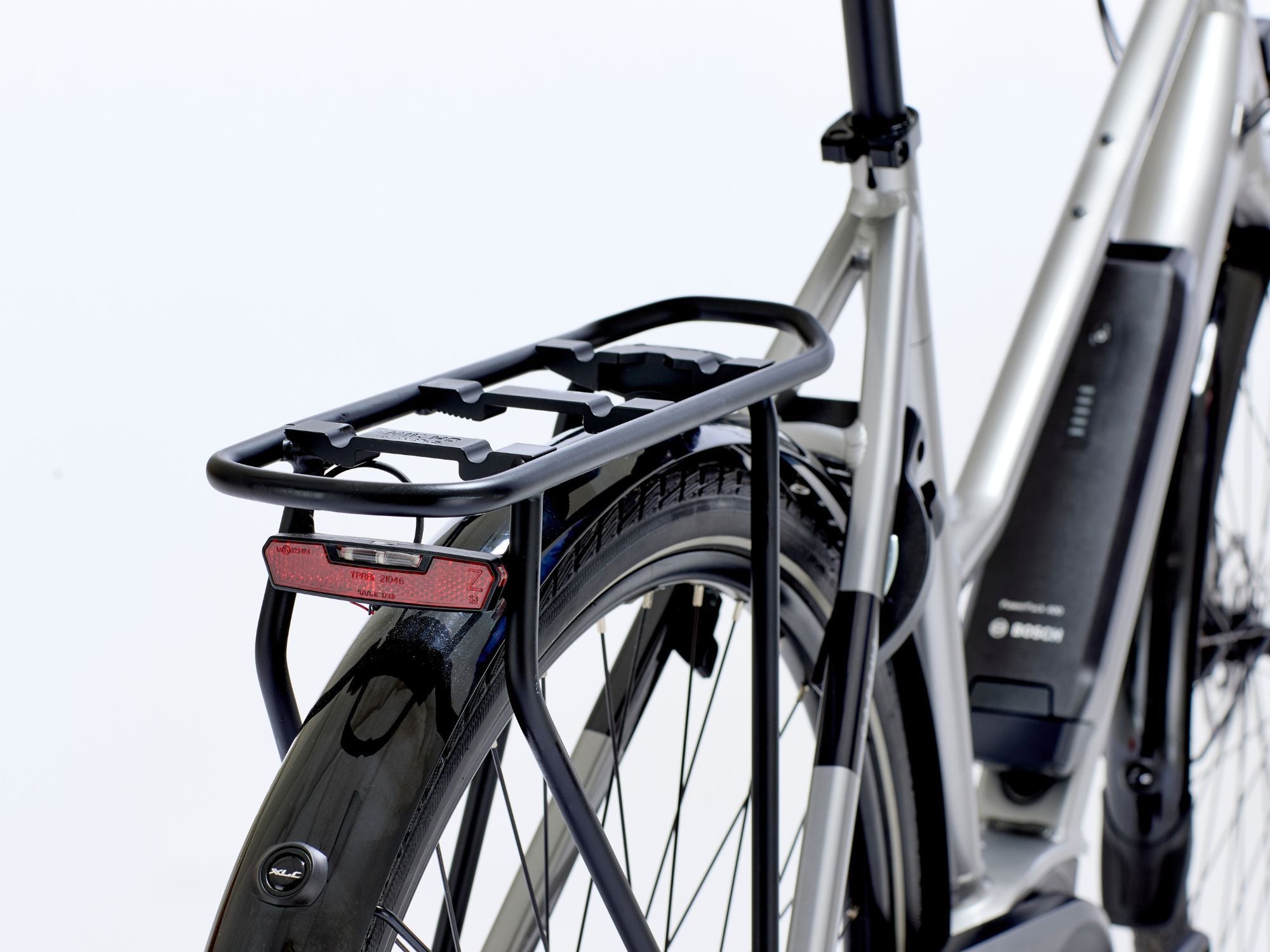

The mid-step frame offers a sleek, versatile look with confident handling - perfect for commuting, errands, or weekend rides. You get the right kit from the start: Shimano 9-speed gears, hydraulic disc brakes, integrated front and rear lights, full mudguards, and a pannier rack for carrying what matters (up to 27kg of it)!
With 700C wheels for efficient rolling and a build that prioritises reliability, Captus is ready to make every ride easier. Just get on, start pedalling, and let it do the hard work.
Premium performance without the premium price tag. No gimmicks - just a well-made e-bike designed to keep up with your life.
Range Calculator
Use this calculator to better estimate the range you might achieve based on your riding conditions:
(Please check the specification to ensure your select the correct motor and battery. The total travel distance will depend on the capacity of the battery, rider and luggage weight, power mode setting and riding style.)
Important
Please be aware that this bike is regulated in line with existing Electric Power Assisted Cycles regulations. Any modification to the bike will invalidate the guarantee and in particular any modification which increases the power of the motor and/or the top assisted speed of the bike may make the rider liable to prosecution. Excluding statutory obligations Raleigh will not be held responsible for any injuries incurred following any modification to this product.
Key Features
400 Wh Battery
Active Line Motor
Premium Tech
Specifications
e-System
e-System
Battery: Bosch Li-ION
Charger: Bosch Smart Charger Charger 2A 220-240V
Display: Bosch Led LED Remote
Motor: Bosch Active Line
Frame
Frame

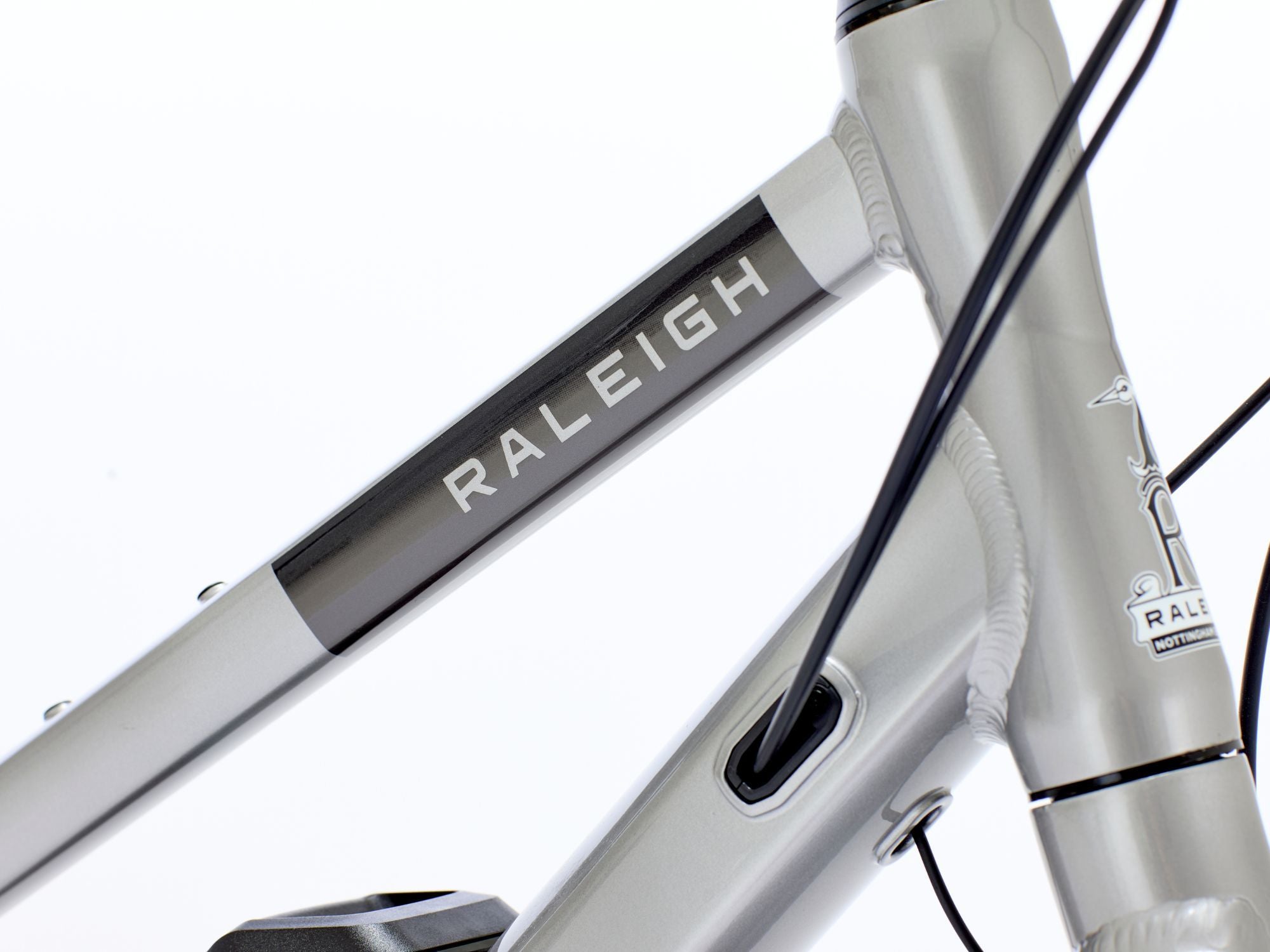

Frame: MID Aluminium Mid-Step
Modular Rail System: No
Maximum loadable weight:
Drive
Drive
Cassette: Shimano Cassette CUES CS-LG400-9, HG
Chain: Shimano Chain CUES CN-LG500 9-11s, LINKGLIDE
Crankset: EC37 BNI Cranks + CR KMC
Derailleur Rear: Shimano Cues CUES RD-U4000-GS 9s, Shadow+
Gear: Shimano Derailleur CUES
Number of gears: 9
Shifter Right: Shimano Triggershift CUES SL-U4000-9R, Rapidfire+
Suspension
Suspension
Front Fork: Raleigh Alloy rigid
Rear Travel:
Shock:
Travel:
Components
Components
Front Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 160 mm
Rear Brake: Shimano Hydraulic Disc brake Altus BR-MT200, 2 pistons, resin pad, 160 mm
Headlight: AXA Via E-bike System NXT 45 E-Bike, 45 Lux, 5-12V
Rear Light: AXA Via E-bike System Juno E-Bike, 6-12V
Brake light: No
Grips: XLC

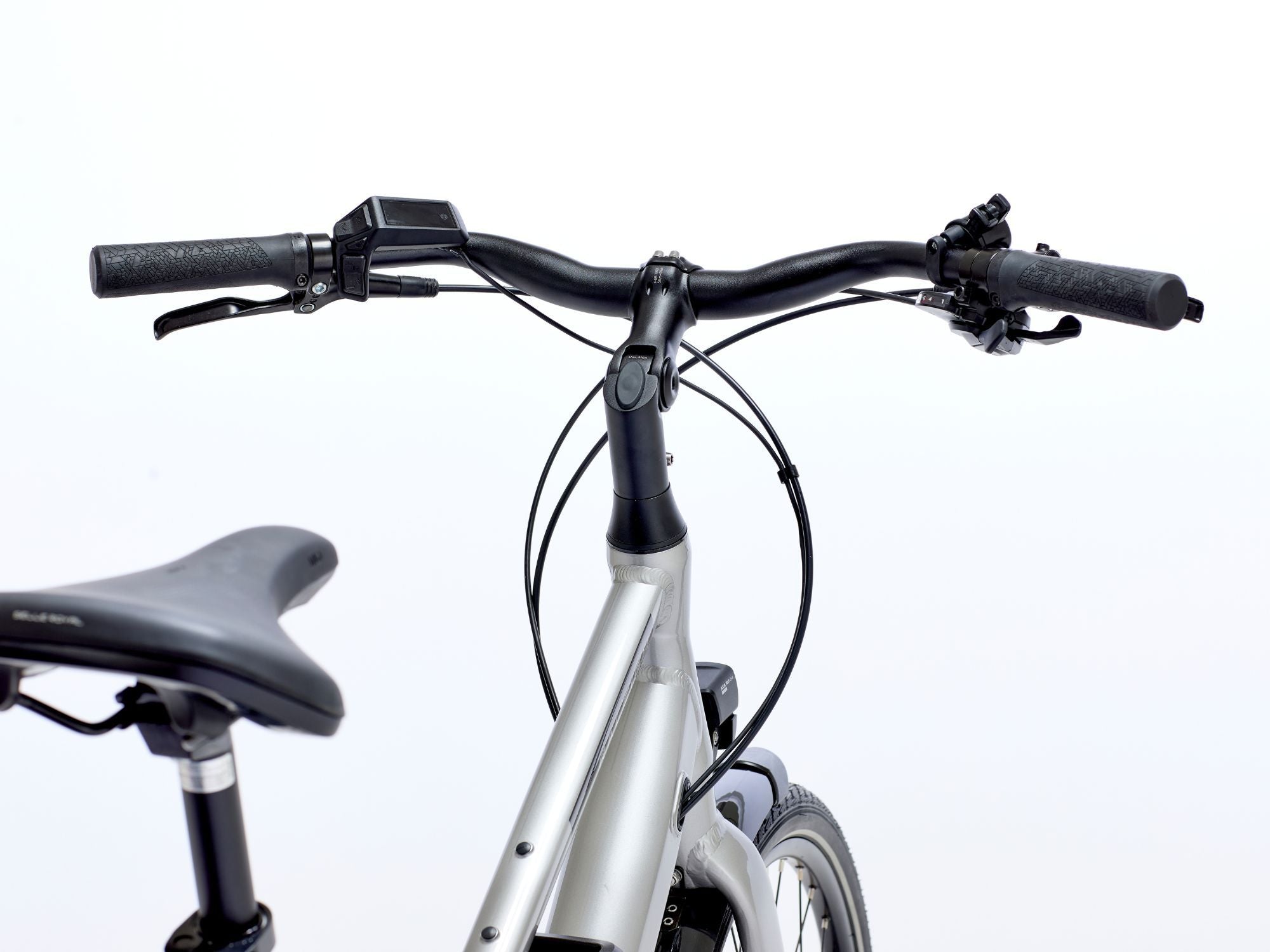

Handlebar: XLC Flat bar JD-TR25AL, Dia. 31.8 mm, L: 640 mm
Pedal: XLC VPE-527 Alloy w/ Reflector

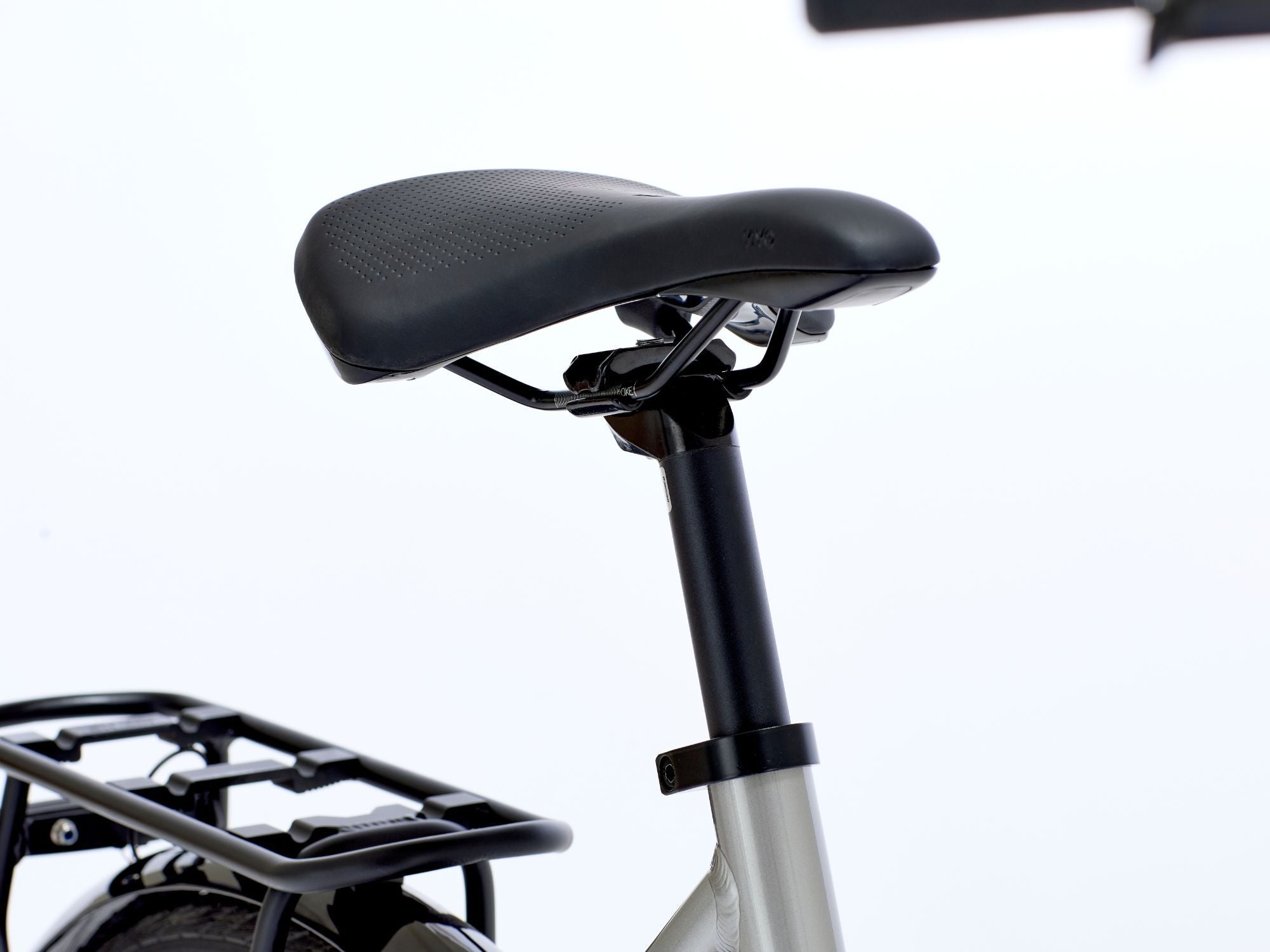

Saddle: Selle Royal City Vivo 1405DRN
Seatpost: Zoom Non Suspension HL-C255 MBL, Dia. 27.2 mm, L: 300 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: Ryde ZAC 421 36H 8,5 mm Valve
Tyre: XLC Traverse CTC 50-622
*The above illustration is for example purposes only. The manufacturer reserves the right to replace individual components shown with equivalent or higher-quality components, provided that the type, suitability and intended use of the bicycle are not impaired, meaning that the bicycle delivered may differ accordingly. The use of other components is currently mainly due to delivery problems.
